D&RGW Inspired 24' Flat Car (On3)

During the Fall of 2004, I designed and scratch built a 24 foot flat car in On3 (1:48) scale from basswood, brass and a few Grandt Line detail parts.

I wanted to build a car as per D&RGW construction practices but figured that a 28 foot car (prototypical length) would be too long for my module(s) and so I built it a little shorter at 24 feet.

Here are all three parts of this project:

 Part 1 - Basic under frame and brake components
 Part 2 - Truss rod, coupler and decking details
 Part 3 - Completing the flatcar

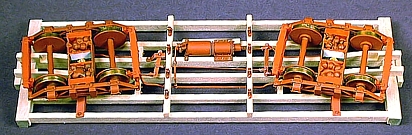

The D&RGW inspired flat car under construction
